BİTKİ BÜYÜTME KABİNLERİ

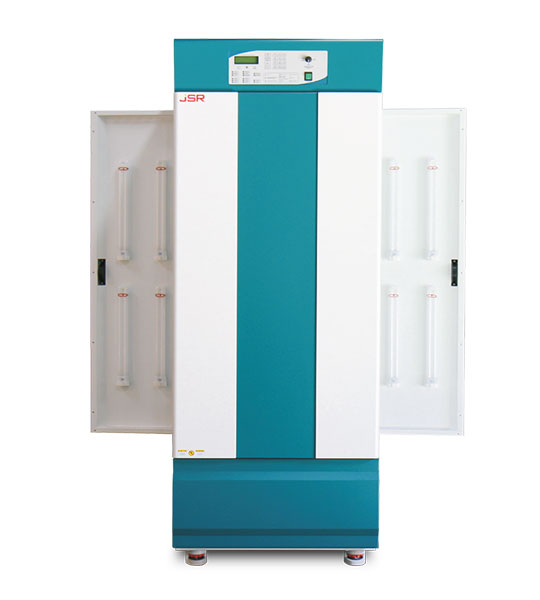

Bitki Büyütme Kabini 3 Taraftan Aydınlatmalı
|
Model |
JSPC-200C |
JSPC-300C |
JSPC-420C |
JSPC-960C |
|
|
Chamber Volume (Capacity) |
200 L |
300 L |
432 L |
964 L |
|
|
Dimensions |
Inner |
600x600x600 |
500x500x1200 |
600x600x1200 |
1200x600x1200 |
|
W x D x H mm |
Outer |
790x935x1385 |
690x835x1985 |
790x935x1985 |
1390x935x1985 |
|
Temperature |
Range |
Light Off : +0 oC ~ 60 oC Light On :+10 oC ~ 60 oC w/o Humidification |
|||
|
|
Accuracy |
± 0.3 oC at 20.0 oC, 60% RH (Light Off) |
|||
|
|
Uniformity |
± 1.0 oC at 20.0 oC, 60% RH (Light Off) |
|||
|
Humidity |
Range |
30 ~ 98% RH (Sensor Range) 30 ~ 85% RH (Control Range) |
|||
|
|
Accuracy |
± 3.0 % RH at 20.0 oC 60% RH |
|||
|
|
Uniformity |
± 6.0 % RH at 20.0 oC 60% RH |
|||
|
Illumination |
Range |
0 ~ 30,000 Lux |
|||
|
|
Steps |
8 Step Combination |
|||
|
|
Lamp |
10 x 36W FPL |
14 x 36W FPL |
14 x 36W FPL |
20 x 36W FPL |
|
|
Configuration |
Fluorescent Lamp |
|||
|
CO2 Control |
Conc. Range |
ambient ~ 5,000 ppm (ambient ~ 20 %) |
|||
|
|
Accuracy |
± 50 ppm |
|||
|
Controller |
Programmable PID Control 11 segments 999 cycle repeatable |
||||
|
Sensors |
Temp |
Class A Pt-100 Ω Sensor |
|||
|
|
Humidity |
Electronic Humidity Sensor |
|||
|
|
CO2 |
High Precision Dual Wavelength NDIR Diffusion Sensor |
|||
|
|
Light |
Lux Meter |
|||
|
Number of shelves / Max. No. |
3 / 11 |
3 / 35 |
3 / 35 |
6 / 35 |
|
|
Heater Capacity |
3.0 kW |
3.1 kW |
3.5 kW |
6.0 kW |
|
|
Refrigeration System |
CFC-Free Air Cooled Hermetically Sealed Compressor |
||||
|
Electric Requirement |
220VAC 50/60Hz 1P |
||||
|
Power Rating |
20 Amp |
21 Amp |
25 Amp |
43 Amp |
|
|
Power Plug |
30 AMP |
30 AMP |
30 AMP |
50 AMP |
|
